UF-180APA23H1C2A

UF-180APA23H1C2A

  • Brand::FULLTECH
  • Product Code: UF-180APA23H1C2A
  • Availability: In Stock
Skype: live:.cid.6d7a8521f5bcac45

Whatsapp +8618814220505 Web | App

Whatsapp +8618819777768 Web | App

Email:fa@kernal-automation.com

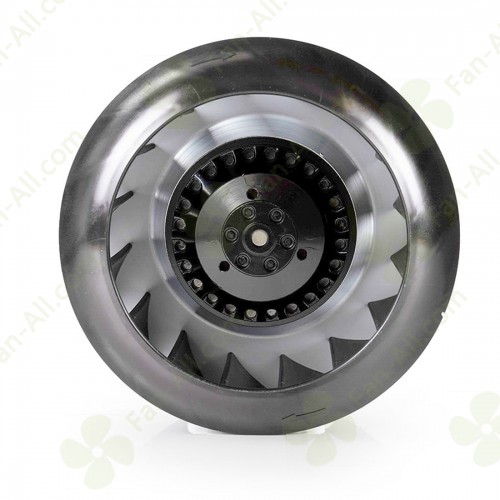

UF-180APA23H1C2A FULLTECH Centrifugal fan Ø182.4mm ,Size Ø182.4mm,Rated Voltage(V) 230 V,Frequency(Hz) 50/60 Hz,Input Power(W) 70/81 W,Rated Current(A) 0.3/0.35 A,Locked Current(A) 0.41/0.44 A,Speed(RPM) 2300/2400 RPM,Maximum Air Flow(m3/min) 8.5/8.5 m3min.,Maximum Air Flow(CFM) 300/300 CFM,Maximum Pressure(mmH2O) 25/34 mmH2O,Maximum Pressure(InchH2O) 1/1.3 InchH2O,Noise(dB) 63/63 dB,Weight(g) 1400,Bearing Ball
Technical
Speed(RPM) 2300/2400 RPM
Noise(dB) 63/63 dB
Weight(g) 1400
Frequency(Hz) 50/60 Hz
Bearing Ball
Rated Current(A) 0.3/0.35 A
Size Ø182.4mm
Rated Voltage(V) 230 V
Input Power(W) 70/81 W
Locked Current(A) 0.41/0.44 A
Maximum Air Flow(m3/min) 8.5/8.5 m3min.
Maximum Air Flow(CFM) 300/300 CFM
Maximum Pressure(mmH2O) 25/34 mmH2O
Maximum Pressure(InchH2O) 1/1.3 InchH2O

Tags: FULLTECH, Centrifugal fan, Ø182.4mm, UF-180APA23H1C2A
